4005.060.001

Part No.	Specification	Surface	Material
4005.060.001	D60 M10x100	Plain	SS304
4005.060.002	D60 M12x100	Plain	SS304
4005.060.003	D60 M16x100	Plain	SS304
4005.080.001	D80 M12x100	Plain	SS304
4005.080.002	D80 M16x100	Plain	SS304
4005.080.003	D80 M20x100	Plain	SS304
4005.100.001	D100 M12x100	Plain	SS304
4005.100.002	D100 M16x100	Plain	SS304
4005.100.003	D100 M20x100	Plain	SS304

4006.040.001

Part No.	Specification	Surface	Material
4006.040.001	D40 M8x100	Plain	SS304
4006.040.002	D40 M10x100	Plain	SS304
4006.040.003	D40 M12x100	Plain	SS304
4006.060.001	D60 M10x100	Plain	SS304
4006.060.002	D60 M12x100	Plain	SS304
4006.060.003	D60 M16x100	Plain	SS304
4006.080.001	D80 M12x100	Plain	SS304
4006.080.002	D80 M16x100	Plain	SS304
4006.080.003	D80 M20x100	Plain	SS304
4006.100.001	D100 M18x100	Plain	SS305
4006.100.002	D100 M20x100	Plain	SS306
4006.100.003	D100 M24x100	Plain	SS307

4012.060.090

4012.060.090

Contact us

Part No.

Specification

Surface

Material

Weight(g)

4012.060.090

60SF

Plain

Aluminum Alloy

712.00

4012.080.090

80SF

Plain

Aluminum Alloy

1054.00

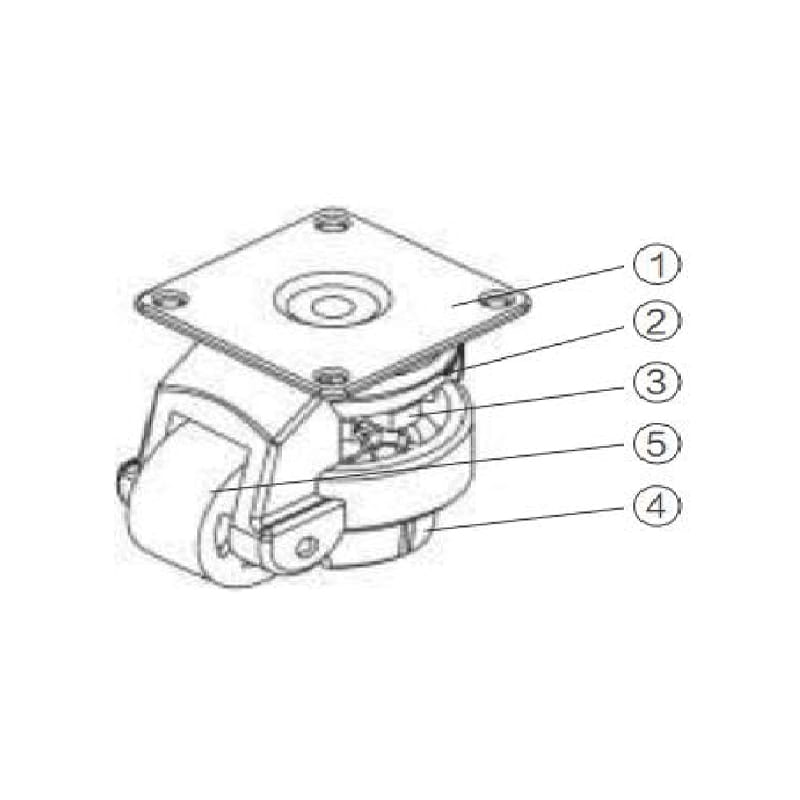

Part No. Recommended load/4pcs (kgs) Load capacity /pc (kgs)

4012.060.090 500 250 101 61 82+10 73x73 58x58 7

4012.080.090 1000 500 125 77 102+15 90x90 70x70 9

×

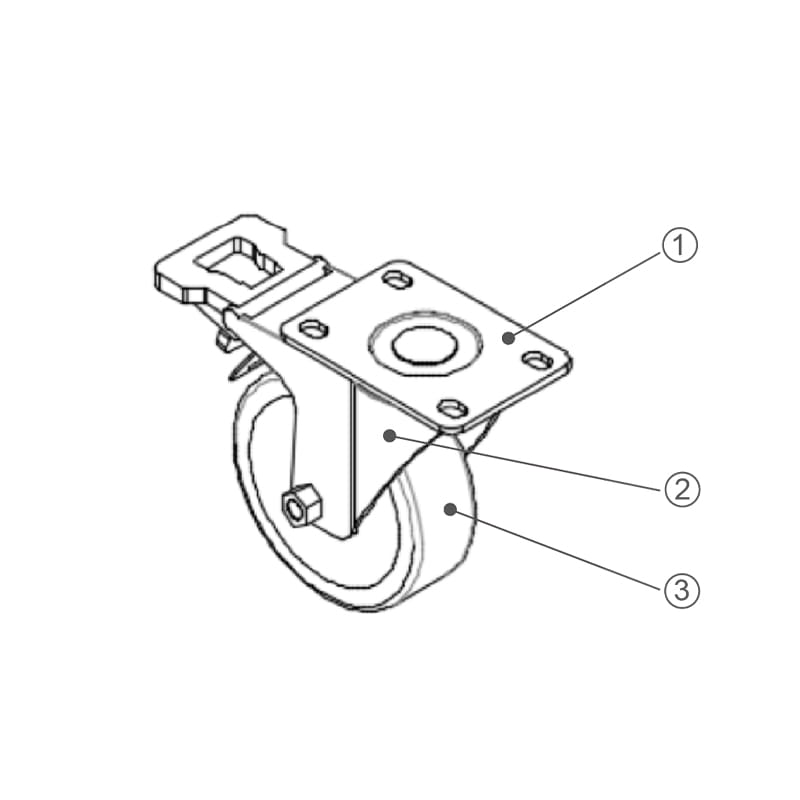

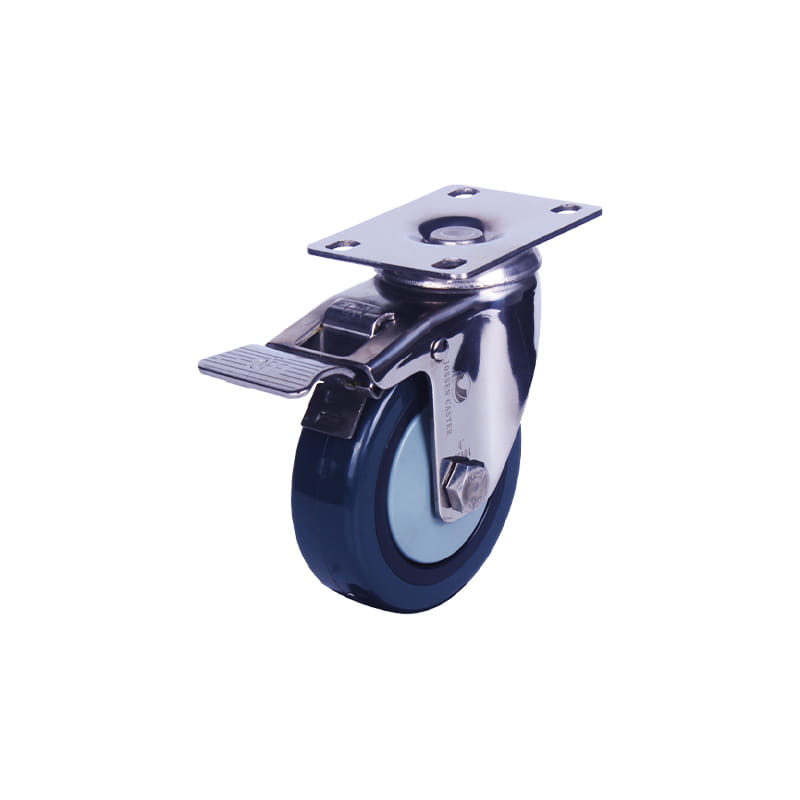

3104.003.075

Part No.	Specification	Surface	Material	Weight(g)
3104.003.075	3"-75x31	Plain	SS304	750
3104.004.100	4"-100x31	Plain	SS304	865
3104.005.125	5"-125x31	Plain	SS304	970

Part No.	Wheel Dia.	Load capacity /pc (kgs)	Total Height	Offset	Plate Size	Hole Distance	Hole Dia.
3104.003.075	3"75x31	100	108.5	35	66.5x94.5x3	44x75	9.0x12
3104.004.100	4"100x31	110	132	30	66.5x94.5x3	44x75	9.0x12
3104.005.125	5"125x31	120	161	36	66.5x94.5x3	44x75	9.0x12

3218.005.001

Part No.	A	B	C	D	E	F	Surface	Material	Weight(g)
3218.005.001	40	20	φ11.5	φ5.5	20	3	Black paint	Carbon Steel	16.02
3218.006.002	60	30	φ13	φ6.6	30	3	Black paint	Carbon Steel	38.74
3218.008.003	80	40	φ18	φ 11	40	4	Black paint	Carbon Steel	91.05
3218.010.004	90	45	φ19.2	φ9.5	45	5	Black paint	Carbon Steel	148.00

3204.006.004

Part No.	A	B	C	D	Surface	Material	Weight
3204.006.004	M8	φ11	φ6.6	7	Shot Blasting	Alu alloy	48.50
3204.006.005	M10	φ11	φ6.6	7	Shot Blasting	Alu alloy	48.00
3204.006.006	M12	φ11	φ6.6.	7	Shot Blasting	Alu alloy	45.50
3204.006.011	M14	φ11	φ6.6	7	Shot Blasting	Alu alloy	44.30
3205.006.004	M8	φ15	φ9	9	Shot Blasting	Alu alloy	42.00
3205.006.005	M10	φ15	φ9	9	Shot Blasting	Alu alloy	40.50
3205.006.006	M12	φ15	φ9	9	Shot Blasting	Alu alloy	39.00
3205.006.011	M14	φ 15	φ9	9	Shot Blasting	Alu alloy	38.00

4002.008.001

4002.008.001

Contact us

Part No.

Specification

Surface

Material

Weight(g)

4002.008.001

Jan-11

Zinc plated

Carbon steel

430.50

×
4001.008.001

4001.008.001

Contact us

Part No.

Specification

Surface

Material

Weight(g)

4001.008.001

38 x 60x 160

Black

Alu alloy

207.00

4001.008.002

38x 60x 160

Black

Zinc alloy

420.00

×

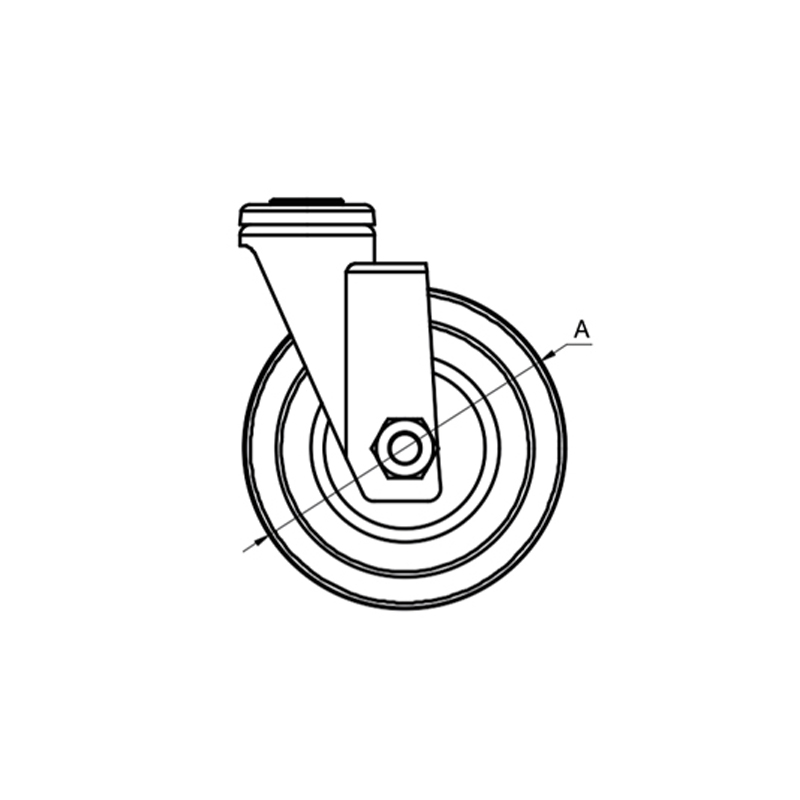

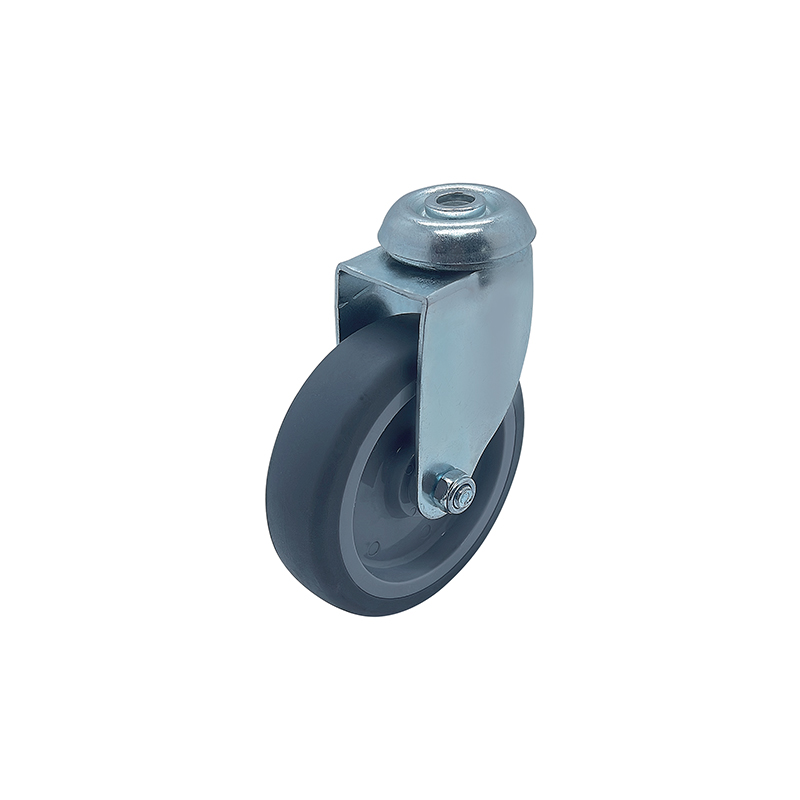

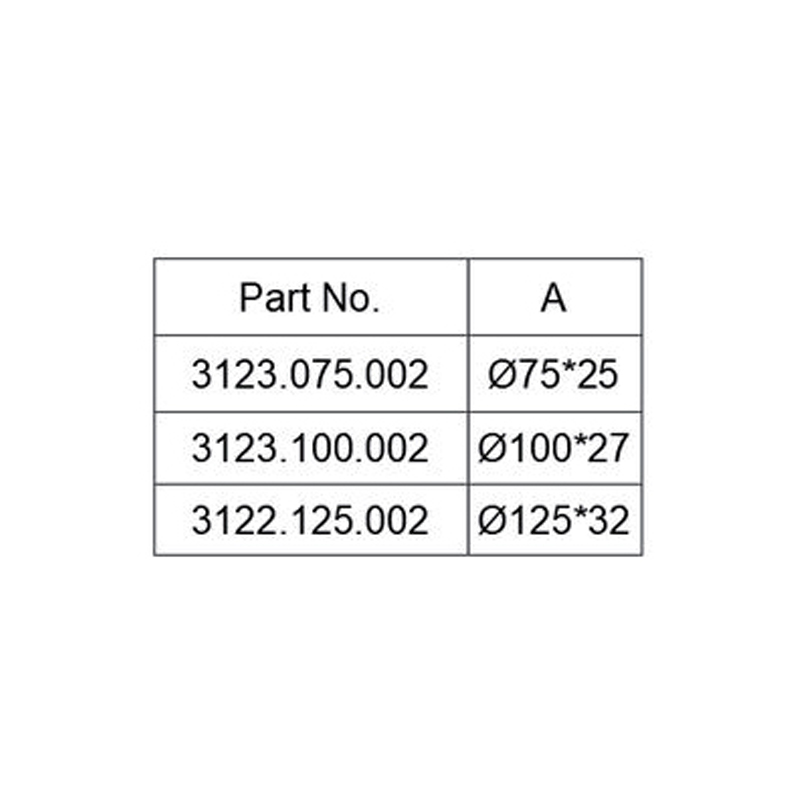

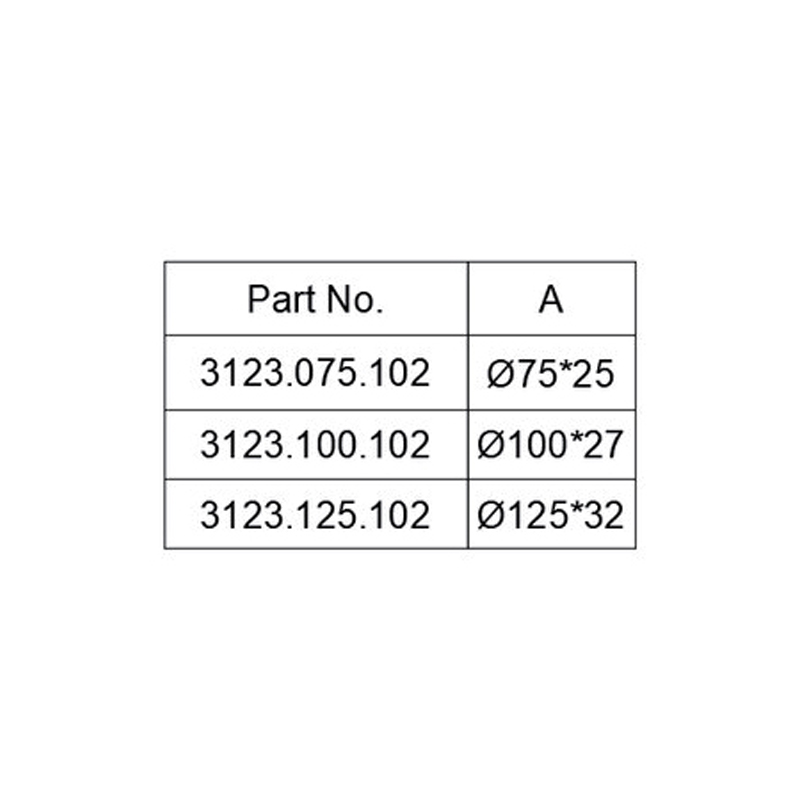

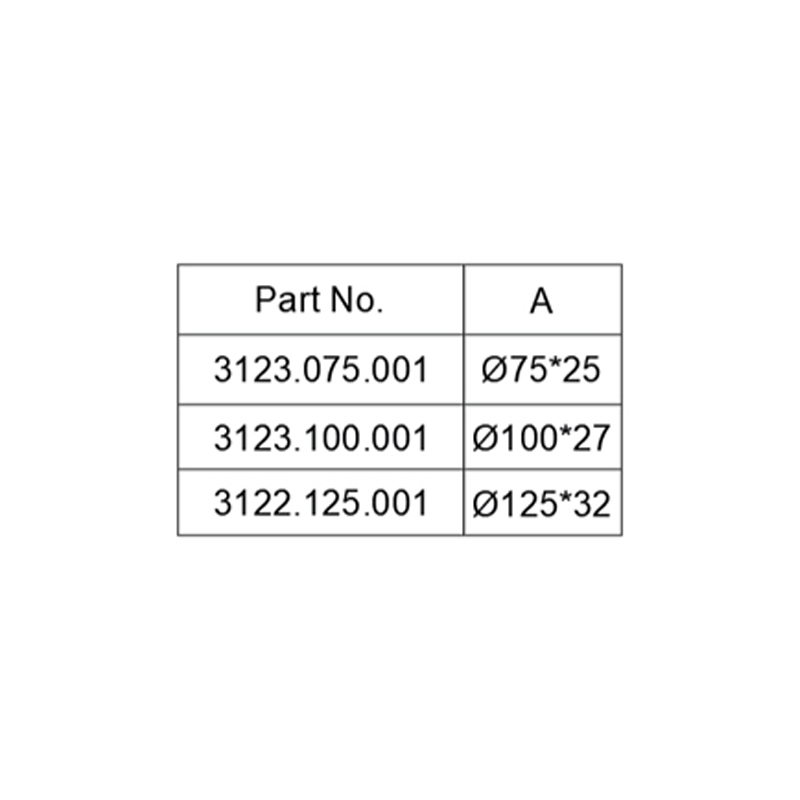

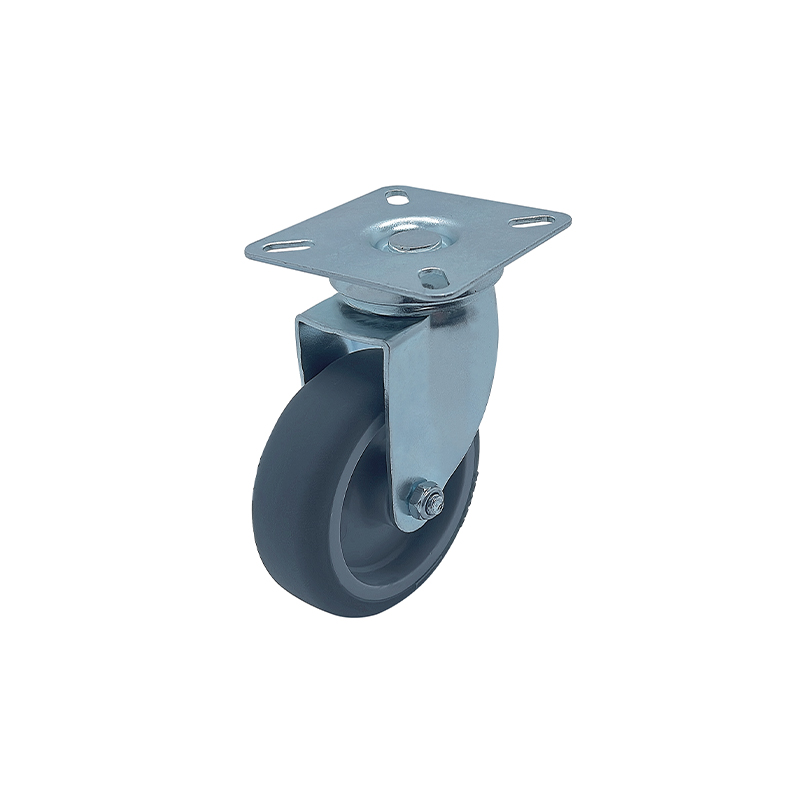

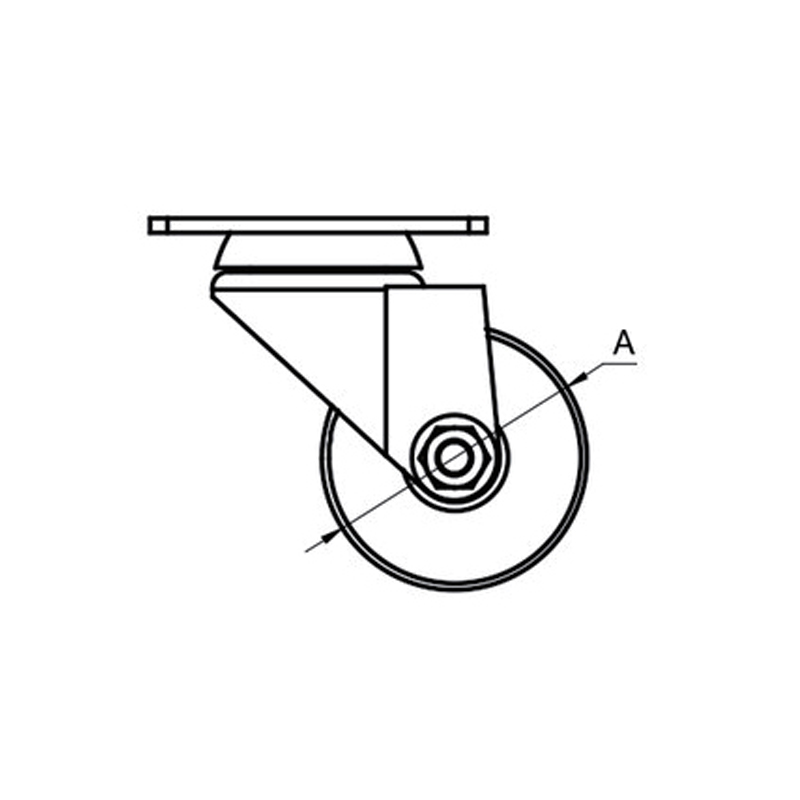

3123.003.075

Part No.	A	Surface	Material	Weight(g)
3123.003.075	Φ75*25	Zinc plated	Carbon steel+PP+PU	285.00
3123.004.100	Φ100*27	Zinc plated	Carbon steel+PP+PU	405.00
3123.005.125	Φ125*32	Zinc plated	Carbon steel+PP+PU	800.00

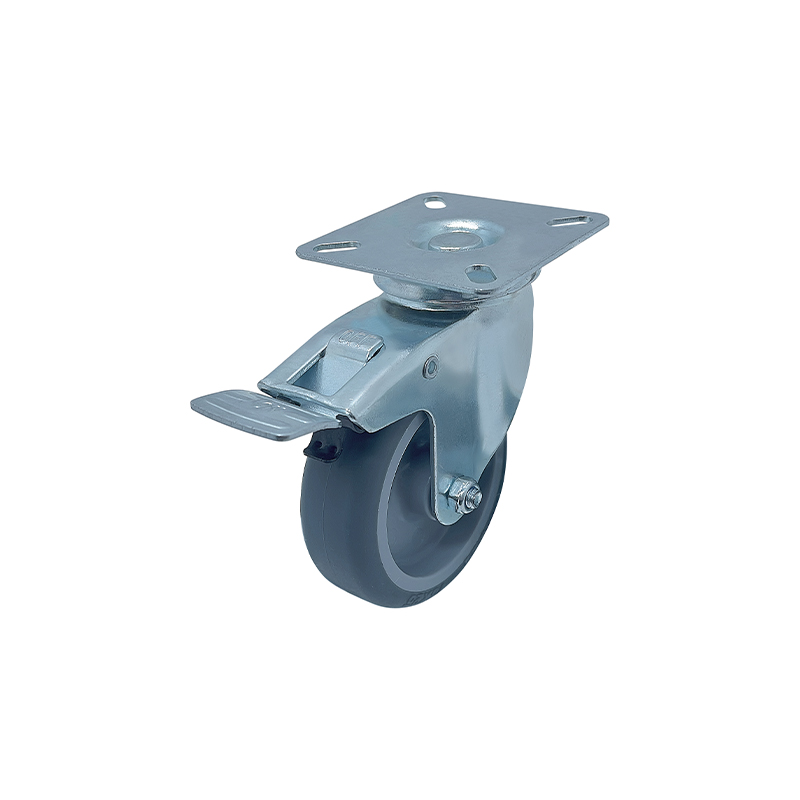

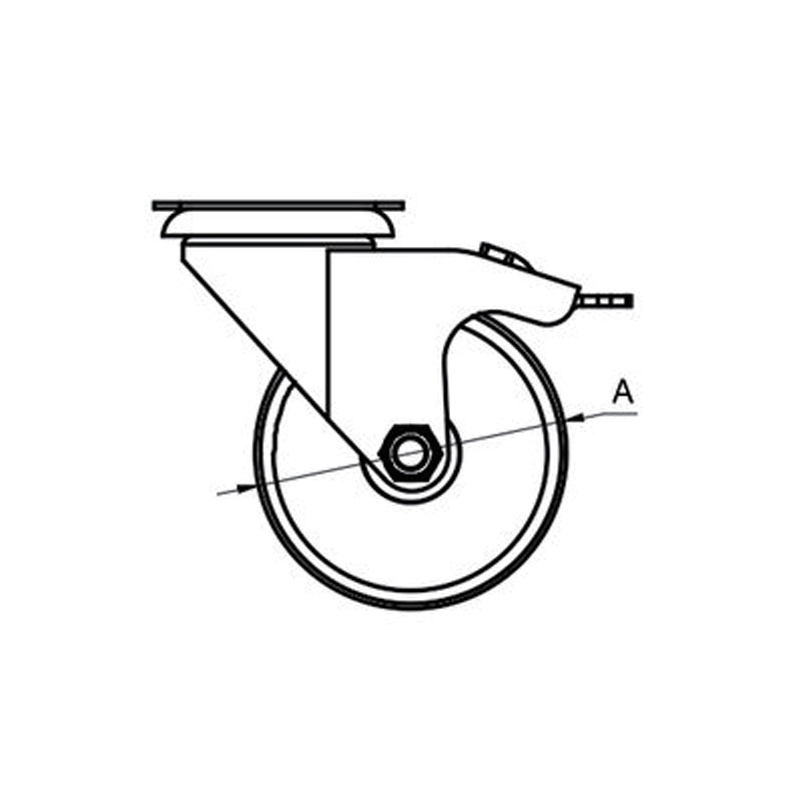

3122.003.075

Part No.	A	Surface	Material	Weight(g)
3122.003.075	Φ75*25	Zinc plated	Carbon steel+PP+PU	340.00
3122.004.100	Φ100*27	Zinc plated	Carbon steel+PP+PU	500.00
3122.005.125	Φ125*32	Zinc plated	Carbon steel+PP+PU	855.00

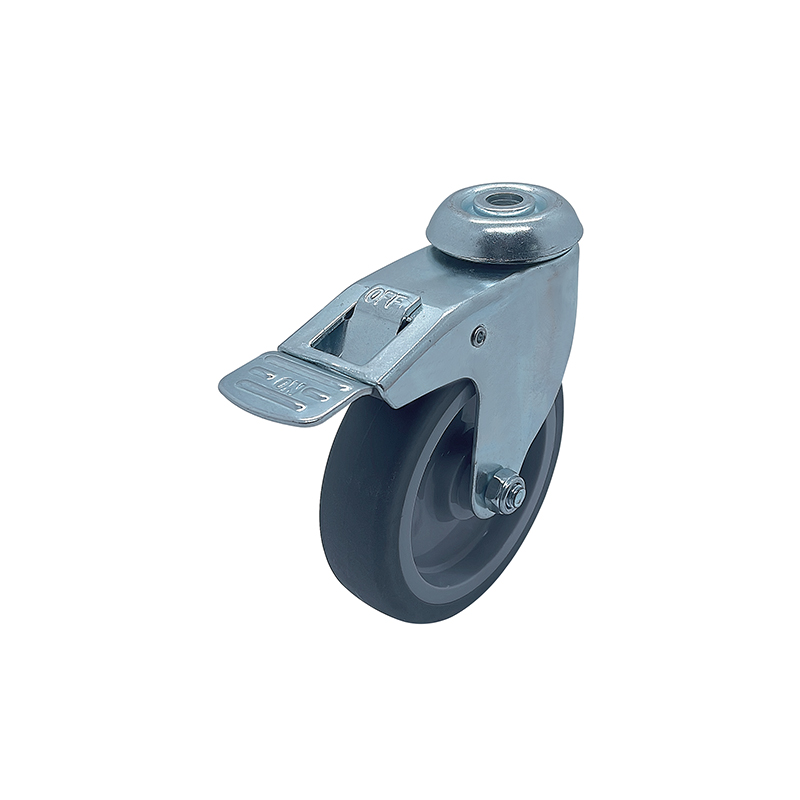

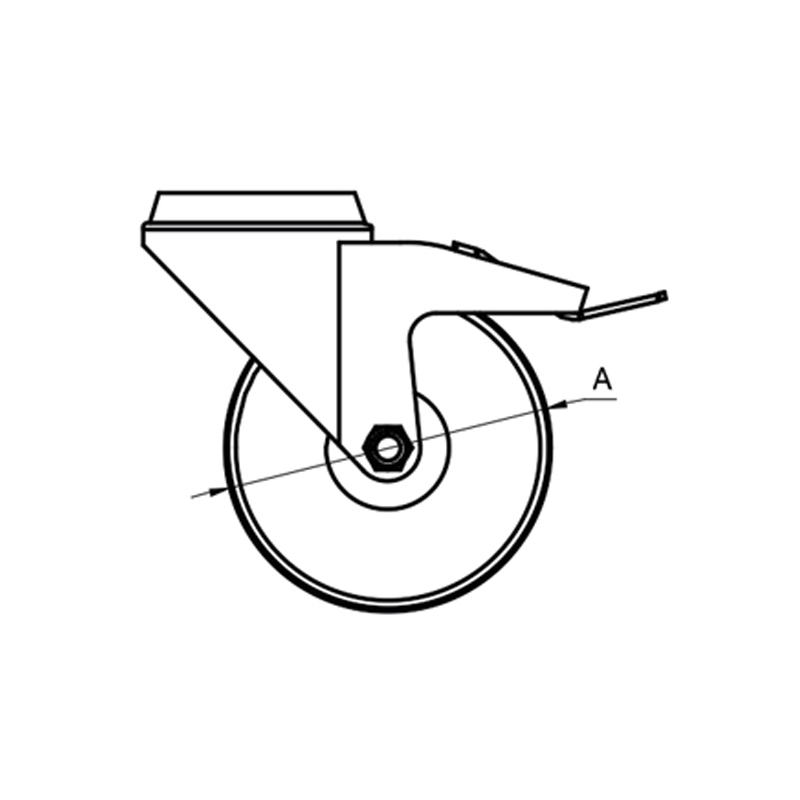

3125.003.075

Part No.	A	Surface	Material	Weight(g)
3125.003.075	Φ75*25	Zinc plated	Carbon steel+TPR	285.00
3125.004.100	Φ100*27	Zinc plated	Carbon steel+TPR	340.00
3125.005.125	Φ125*32	Zinc plated	Carbon steel+TPR	630.00

3124.003.075

Part No.	A	Surface	Material	Weight(g)
3124.003.075	Φ75*25	Zinc plated	Carbon steel+TPR	340.00
3124.004.100	Φ100*27	Zinc plated	Carbon steel+TPR	410.00
3124.005.125	Φ125*32	Zinc plated	Carbon steel+TPR	700.00

T-slot profile floor elements encompass various components designed to construct robust and flexible flooring structures using T-slot aluminum profiles. Here's a list of related components and elements:

Floor Mounting Brackets: These brackets secure the floor profiles to the ground or existing structures, providing stability and support. They come in various sizes and designs to accommodate different profile dimensions and installation requirements.

Base Plates: Base plates are attached to the underside of floor profiles, providing additional stability and a secure foundation for the structure.

Adjustable Leveling Feet: Adjustable feet allow for precise leveling and compensation for uneven surfaces. They ensure the floor remains stable and level, even on challenging terrain.

Floor Panel Supports: These supports are adjustable and designed to hold panels, decking material, or other surface coverings on the floor structure.

End Caps and Cover Caps: End caps and cover caps provide a clean, finished appearance to exposed ends of floor profiles. They also serve to protect against dust and debris.

Slot Covers: Slot covers are used to shield and safeguard unused T-slots in the floor profiles, preventing the accumulation of dirt and debris.

Floor Leveling Components: Components like shims or wedges help fine-tune the level of the floor structure during installation, ensuring it's perfectly flat.

Anchors and Fasteners: Anchors and fasteners secure the entire floor structure to the ground or other structures, enhancing stability and safety.

Accessories and Hardware: Various accessories and hardware, including screws, nuts, bolts, and tools, are vital for assembling, securing, and maintaining the floor elements.

Safety Features: Safety components such as anti-slip coatings, handrails, and guards may be integrated into the floor design for enhanced workplace safety.

These floor elements collaborate to create a versatile, adaptable, and robust floor structure using T-slot aluminum profiles. They find application in diverse settings, including workstations, assembly lines, machine bases, industrial flooring, and more.

About Minde

Ningbo Minde Technology Co., Ltd.

The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China T Slot Floor Elements Manufacturers and T Slot Floor Elements Factory, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.

Certificate Of Honor

News

How do cable tie mounting blocks prevent accidental dislodgement or cable slippage?
21 Nov, 2024
Cable tie mounting blocks are designed with features and materials that ensure secure attachment and...
READ MORE
Are the T-slot profile hinges guaranteed to withstand the expected loads without failure?
13 Nov, 2024
T-slot profile hinges can be designed and manufactured to handle specific loads, but whether they ar...
READ MORE
How can T-slot profile end caps be used to enhance the overall look of a modular assembly?
07 Nov, 2024
T-slot profile end caps can significantly enhance the overall aesthetic and functionality of a modul...
READ MORE
How do T Slot Profile End Caps ensure compatibility with a wide range of T-Slot sizes and profiles?
01 Nov, 2024
T Slot Profile End Caps ensure compatibility with a wide range of T-Slot sizes and profiles through ...
READ MORE
Factors affecting the contact resistance of 3-way end corner connector
23 Oct, 2024
As an important component of electrical connection, the 3-way end corner connector's contact resista...
READ MORE

Message Feedback

T Slot Floor Elements Industry knowledge

Structural design features of T Slot Floor Elements

T slot floor elements are a flooring system widely used in industrial fields. Their structural design features provide strong support while also focusing on flexibility and customizability.

T-shaped notch design:

The most distinctive feature of the T-slot floor element is its T-shaped notch design. This design allows for easy and secure connections between floor units. The T-shaped notches provide vertical connection stability and facilitate horizontal alignment, ensuring the structural strength of the entire flooring system.

material selection:

T-slot floors usually use high-strength materials, such as aluminum alloy or engineering plastics. These materials offer superior durability and strength to withstand heavy equipment and loads, while resisting corrosion and abrasion, extending the life of your flooring system.

Modular structure:

T-slot floor elements often present a modular structure, with each floor unit being an independent module. This structure makes installation, adjustment and maintenance easier while also providing a high degree of flexibility. Enterprises can freely combine, replace or adjust floor units as needed to adapt to different production needs.

Multifunctional slot:

T-shaped slots are not only used to connect floor units, but can also accommodate various attachments and accessories, such as clamps, guide rails, cable troughs, etc. This facilitates the layout of industrial production lines and the installation of equipment, while making T-slot floor elements suitable for diverse application scenarios.

Surface treatment and texture design:

The surface of T-groove flooring is usually specially treated to increase slip resistance and wear resistance. Some designs may add special textures to the surface to improve the floor's slip resistance, especially in wet environments, ensuring the safety of the work area.

Adaptable design:

The structural design of T-slot floor elements takes into account the needs of different industrial environments, including manufacturing, automotive factories, electronics production, etc. This versatility makes T-slot floor adaptable to various industries and application scenarios, providing a solid foundation for different production lines.

Installation and maintenance of T Slot Floor Elements

The installation and maintenance of T Slot Floor Elements are key to ensuring long-term stable operation of the floor system.

Install:

Planning and measuring:

Before proceeding with the installation of T slot floor elements, detailed planning and measurements are required to determine the layout of the floor, the location of the slots and ensure the flatness of the floor. This ensures accurate installation of the flooring system.

Ground preparation:

The floor will need to be prepared, including cleaning, leveling, filling or repairing unevenness or damage to the floor surface. A flat floor ensures the stability of T-slot floor elements after installation.

Slot connection:

The installation of T-slot floor elements involves the correct connection of the slots. Installers need to ensure proper alignment of the T-notches to ensure a stable and reliable connection between floors.

Modular assembly:

T-slot floors usually adopt a modular structure so that each floor unit is an independent module. This design allows installers to quickly assemble and install floor units, arranging and adjusting them according to actual needs.

Accessory installation:

As needed, the installer may need to install accessories and accessories in the slots, such as rails, cable troughs, pipe supports, etc. Proper installation of these accessories is critical to the functionality of the entire flooring system.

Test and tweak:

After installation is complete, testing and adjustments must be made to ensure the stability and performance of the flooring system. This may include load testing, resistance testing, and flatness testing of the floor surface.

maintain:

Periodic inspection:

Regular inspections are an important step in maintaining efficient operation of your T-slot floor element system. Check whether the floor connections are tight, whether the accessories are safe, whether the notches are damaged, etc.

Cleaning and Maintenance:

Flooring systems need to be cleaned regularly to ensure that slots are clear and to avoid the accumulation of dust, grease or other impurities that could affect the joints and stability of the floor.

Replace damaged parts:

If any damaged floor units or fittings are discovered during inspection, they must be replaced promptly. Timely replacement can prevent the problem from expanding and ensure the safety of the entire flooring system.

Lubrication and maintenance:

If parts of the flooring system require lubrication, operators should use an appropriate lubricant and ensure that lubrication is performed in accordance with the manufacturer's recommendations.
