2027.006.001

2027.006.001

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2027.006.001

M4

Plain

SS304

1.00

2027.006.002

M5

Plain

SS304

0.90

×
2018.008.001

2018.008.001

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2018.008.001

M4

Plain

SS304

3.70

2018.008.002

M5

Plain

SS304

3.60

2018.008.003

M6

Plain

SS304

3.50

×

2018.010.001

Part No.	Thread	Surface	Material	Weight(g)
2018.010.001	M4	Plain	SS304	8.10
2018.010.002	M5	Plain	SS304	7.80
2018.010.003	M6	Plain	SS304	7.20
2018.010.004	M8	Plain	SS304	6.10

2201.005.000

2201.005.000

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2201.005.000

M3

Zinc plated

Carbon steel

1.40

2201.005.001

M4

Zinc plated

Carbon steel

1.60

×

2203.005.001

Part No.	Thread	Surface	Material	Weight(g)
2203.005.001	M4	Zinc plated	Carbon steel	1.53
2203.005.002	M5	Zinc plated	Carbon steel	1.68
2203.005.007	10-32	Zinc plated	Carbon steel	1.50

2204.006.000

Part No.	Thread	Surface	Material	Weight(g)
2204.006.000	M3	Zinc plated	Carbon steel	5.05
2204.006.001	M4	Zinc plated	Carbon steel	4.75
2204.006.002	M5	Zinc plated	Carbon steel	4.45
2204.006.003	M6	Zinc plated	Carbon steel	4.15

2205.006.000

Part No.	Thread	Surface	Material	Weight(g)
2205.006.000	M3	Zinc plated	Carbon steel	5.50
2205.006.001	M4	Zinc plated	Carbon steel	5.20
2205.006.002	M5	Zinc plated	Carbon steel	4.80
2205.006.003	M6	Zinc plated	Carbon steel	4.50

2207.008.001

Part No.	Thread	Surface	Material	Weight(g)
2207.008.001	M4	Zinc plated	Carbon steel	19.50
2207.008.002	M5	Zinc plated	Carbon steel	18.50
2207.008.003	M6	Zinc plated	Carbon steel	17.50
2207.008.004	M8	Zinc plated	Carbon steel	16.50
2207.008.008	1/4-20	Zinc plated	Carbon steel	16.50
2207.008.009	5/16-18	Zinc plated	Carbon steel	16.60

2211.008.003

2211.008.003

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2211.008.003

M6

Zinc plate

Carbon steel

18.00

×

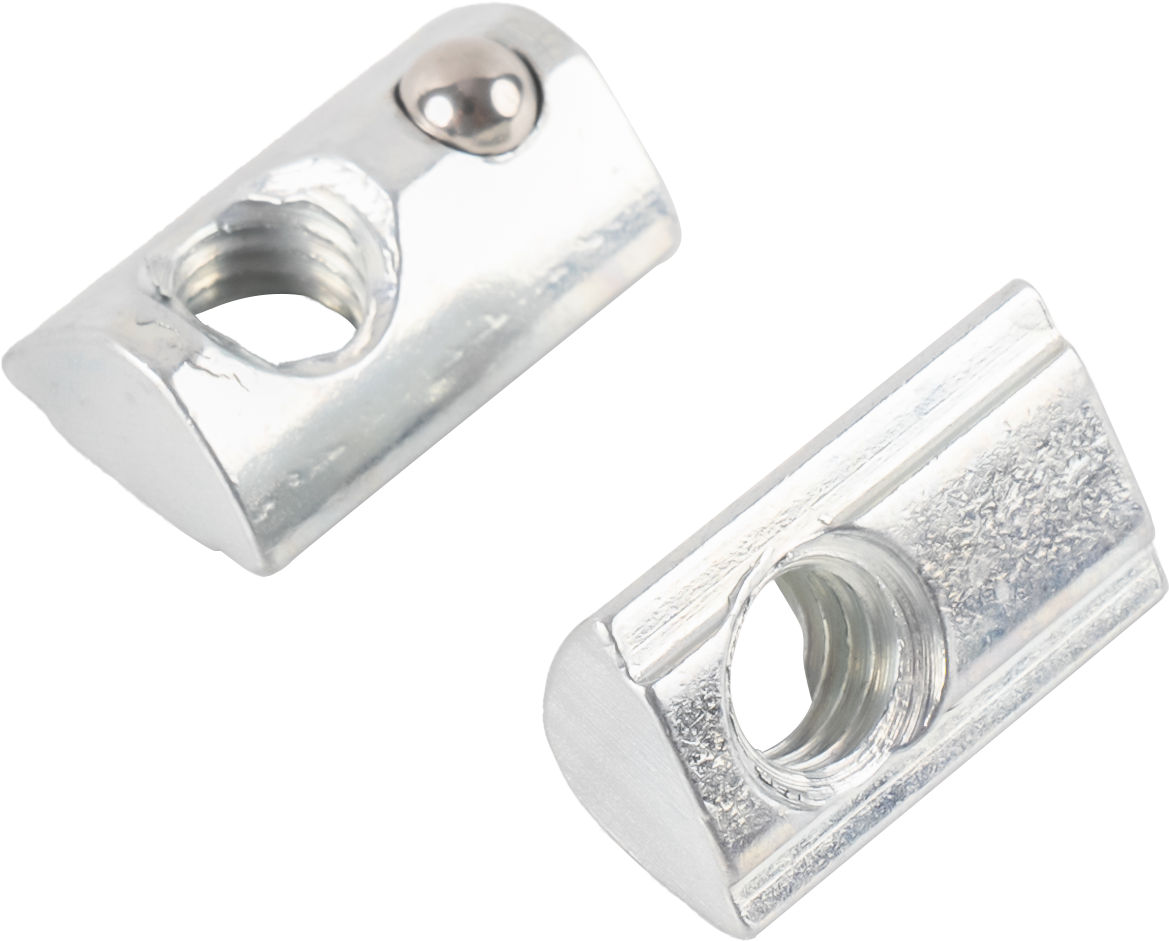

2208.008.001

Part No.	Thread	Surface	Material	Weight(g)
2208.008.001	M4	Zinc plated	Carbon steel	10.85
2208.008.002	M5	Zinc plated	Carbon steel	10.52
2208.008.003	M6	Zinc plated	Carbon steel	10.08
2208.008.004	M8	Zinc plated	Carbon steel	9.00
2208.008.007	10-32	Zinc plated	Carbon steel	10.80
2208.008.008	1/4-20	Zinc plated	Carbon steel	9.50
2208.008.009	5/16-18	Zinc plated	Carbon steel	9.60

2210.008.001

Part No.	Thread	Surface	Material	Weight(g)
2210.008.001	M4	Zinc plated	Carbon steel	11.3
2210.008.002	M5	Zinc plated	Carbon steel	10.8
2210.008.003	M6	Zinc plated	Carbon steel	10.2
2210.008.004	M8	Zinc plated	Carbon steel	9.40

2212.008.003

2212.008.003

Contact us

Part No.

Thread

Surface

Material

Weight(g)

2212.008.003

M6

Zinc plated

Carbon steel

40.00

×

Aluminium Profile T nuts and T bolts are essential components in the realm of modular construction and assembly, offering versatile and efficient solutions for connecting components within T slotted aluminum extrusion profiles. T slotted profiles are characterized by a T shaped groove that runs along their length, providing a framework for building structures, frames, and machinery in various industries.

Profile T nuts are specialized fasteners designed to fit seamlessly within the T-slots of aluminum profiles. These T-nuts typically have a threaded hole that allows for the attachment of bolts or screws. The assembly process involves inserting T-nuts into the T-slots and then securing them in place using bolts or screws. This method provides a robust and adjustable connection point for attaching various components such as panels, brackets, and accessories.

The advantages of using profile T-nuts include: Modularity and Flexibility: T-nuts enable the rapid assembly and disassembly of components, offering flexibility in adapting and reconfiguring structures as needed.

Simplified Assembly: T-nuts eliminate the need for additional machining or drilling, streamlining the construction process and reducing labor time.

Adjustability: Components attached to T-nuts can be easily repositioned along the T-slots, allowing for precise alignment and modifications without dismantling the entire structure.

Strong and Reliable: T-nuts create a secure and sturdy connection, ensuring the stability and integrity of the assembled structure.

Cost-Effective: The use of T-nuts eliminates the need for specialized tools or complex assembly techniques, contributing to cost savings.

T bolts are another crucial element in T-slotted profile assembly. They have a T-shaped head that fits into the T-slots and a threaded shaft that accommodates nuts or other fasteners. T-bolts are inserted into the T-slots and then tightened with nuts to secure components in place. This method provides a robust and adjustable connection similar to T-nuts.

Advantages of T bolts include:

Secure Connection: T-bolts create a strong and reliable connection, ensuring that components remain firmly attached.

Easy Adjustment: T bolts allow for quick and simple adjustments to component positioning along the T-slots.

Wide Compatibility: T bolts can be used with various types of fasteners, offering versatility in assembly.

In conclusion, Profile T nuts and T bolts play integral roles in the assembly of structures using T-slotted aluminum profiles. Their modular and adjustable nature, along with the ease of assembly, make them indispensable components in industries that require flexible and efficient construction methods. These components contribute to the rapid development of robust and customizable systems while minimizing labor and costs.

About Minde

Ningbo Minde Technology Co., Ltd.

The company was established in 2004 and has passed ISO9001, SGS, and RoHS certification. To create an ideal green enterprise, protect limited resources, and reduce waste and pollution, our products have passed SGS environmental testing and comply with the EU RoHS directive. As China Profile T Nuts Manufacturers and Profile T Bolts Suppliers, production area 12,000㎡, Two office areas 350㎡, Have 65 Experienced team-member. The major production process includes tooling designing & making, die casting, forging, stamping, precision machining, drilling, surface plating, Intelligent infrared detecting and automation packing, etc. Mostly exported to more than 35 countries and regions, major markets are the USA, Europe, the Middle East, and Southeast Asia.

Certificate Of Honor

News

Environmental protection and efficiency go hand in hand: 2708.008.001 supports the dual benefits of lightweight design of components
26 Dec, 2024
In any production system, reducing the weight of equipment and components is one of the important me...
READ MORE
From performance to aesthetics: comprehensive application of aluminum alloy surface coating in 2509.006.001
20 Dec, 2024
In the field of automation equipment and precision manufacturing, the corrosion resistance and durab...
READ MORE
How do T-slotted profile automatic connectors affect the structural integrity of an assembled system?
04 Dec, 2024
T-slotted profile automatic connectors play a significant role in maintaining and enhancing the stru...
READ MORE
What factors influence the cost of manufacturing customized machinery components?
25 Nov, 2024
The cost of manufacturing customized machinery components depends on several interrelated factors.In...
READ MORE
How do cable tie mounting blocks prevent accidental dislodgement or cable slippage?
21 Nov, 2024
Cable tie mounting blocks are designed with features and materials that ensure secure attachment and...
READ MORE

Message Feedback

Profile T Nuts & T Bolts Industry knowledge

1. Introduction to Profile T Nuts & T Bolts

Profile T nuts and T bolts represent a cornerstone in modern construction and assembly processes, particularly within industries reliant on aluminum framing systems. These fasteners, with their distinctive T-shaped design, serve as the linchpin for joining structural components with precision and efficiency. At their essence, profile T nuts and T bolts facilitate the seamless integration of aluminum profiles, enabling the creation of robust frameworks, machinery, and enclosures.

The beauty of profile T nuts and T bolts lies in their simplicity. The T-slot design, a signature feature of these fasteners, allows for effortless insertion and adjustment within aluminum profiles. This streamlined approach to fastening simplifies the assembly process, reducing both time and labor costs associated with traditional methods. Moreover, the versatility inherent in T-slot connections empowers engineers, designers, and DIY enthusiasts alike to explore innovative solutions in their projects.

2. Functionality and Applications

Profile T nuts and T bolts derive their strength from their fundamental functionality. The T-shaped head of the bolt effortlessly navigates into the corresponding T-slot of the profile, creating a secure and stable connection. This design principle not only enhances ease of assembly but also facilitates dynamic adjustments and modifications without compromising structural integrity.

The applications of profile T nuts and T bolts span a broad spectrum of industries and sectors. In industrial settings, these fasteners find utility in the construction of robust machinery and automation systems. Their adaptability allows engineers to construct modular frameworks that can be easily reconfigured to accommodate evolving production needs. Furthermore, profile T nuts and T bolts serve as the backbone of modular shelving and storage solutions, providing a customizable platform for organizing and storing goods in warehouses and distribution centers.

Beyond industrial applications, profile T nuts and T bolts feature prominently in the realm of exhibitions and trade shows. The versatility of these fasteners enables the creation of eye-catching displays and booths that can be assembled and disassembled with ease. Their compatibility with standard aluminum profiles simplifies logistics and ensures seamless integration into existing frameworks.

In the realm of ergonomic design, profile T nuts and T bolts play a pivotal role in crafting workbenches and ergonomic workstations tailored to the unique needs of individuals and industries. By leveraging T-slot connections, designers can create adjustable platforms that promote productivity and comfort in the workplace.

3. Key Considerations and Best Practices

While Profile T Nuts & T Bolts offer remarkable versatility and efficiency, several key considerations and best practices ensure their optimal usage and longevity in various applications.

Compatibility and Dimensional Accuracy

Ensuring compatibility between profile T nuts, T bolts, and aluminum profiles is fundamental to the integrity of the assembly. Dimensional accuracy plays a pivotal role in guaranteeing a snug fit between components, minimizing the risk of misalignment or instability. Manufacturers and users should adhere to standardized dimensions and specifications to mitigate potential compatibility issues.

Proper Torque and Tightening Procedures

Applying the correct torque during the tightening process is critical to prevent under- or over-tightening of profile T nuts and T bolts. Over-tightening can distort the aluminum profiles or strip the threads, compromising the integrity of the joint. Conversely, under-tightening may result in inadequate clamping force, leading to loose connections and potential structural failures. Utilizing torque wrenches and adhering to manufacturer-recommended torque values ensure uniform and consistent tightening across assemblies.

Regular Inspection and Maintenance

Periodic inspection and maintenance are essential components of a proactive approach to ensuring the longevity and reliability of profile T nuts and T bolts. Routine checks for signs of wear, corrosion, or fatigue help identify potential issues early on, allowing for timely intervention and replacement of worn or damaged components. Lubrication of threads and T-slots further enhances performance and extends the service life of fasteners in demanding environments.

Environmental Considerations

Environmental factors such as temperature fluctuations, humidity levels, and exposure to corrosive substances can adversely affect the performance of profile T nuts and T bolts. Selecting appropriate materials and finishes resistant to corrosion and oxidation mitigates the risk of premature degradation and ensures continued reliability in harsh operating conditions. Implementing protective measures such as sealing T-slot openings and utilizing corrosion-resistant coatings enhances the durability and serviceability of assemblies over time.
